Zappy

Value Picker

Summary:

This document will explain you how to use Zappy Value Picker.

Zappy Task Editor can be started from the Zappy Context Menu by right clicking on zappy icon at the bottom right corner or by double clicking on it.

Zappy Task editor allows you to manage workflow and add validation actions. Task Editor is our powerful and user-friendly automation canvas, is an essential component in Zappy. It features a rich collection of pre-built activities, integrates with several programming languages, and promotes ease-of-use, scalability, and efficiency.

Value Picker: While setting properties in property panel, if you click on three dots Zappy Value Picker will be opened. We use Value Picker to get and set the properties of actions.

In Value Picker we will see three options,
1) Variable 2) Expression 3) Static Value

Uses of these-options are explained in detail below.

1) Variable

Select Variable from Value Picker and select the action whose Input/output will be used as Input for current action.

For E.g.:
When we click on Set Variable Value action, on right hand side in property panel we will see three dots. In front of Variable Value property/field, click on three dots Value Picker will be opened.
Click on Variable option and select Select Folder action from the drop-down menu, as we want to set the output of Select Folder action as the input to Set Variable Value action.

In Variable, we will see all the fields of Select Folder action, like Selected Folder, Display Name, Continue On Error, Pause Time After. We can select any field from these according to our requirement. Here we are selecting Selected Folder property/field which we want to set as Input of Set Variable Value. Click OK.

2) Expression

Expression is used to write the codes which we will need during automation. This code has to be written in Lambda Expression (C#). Also used for parsing variable.
Here we have written the code for creating the text file in selected folder.
In this way you can write any code required for your automation. Click OK.

3) Static Value

A variable that has been allocated "statically", meaning they have a scope till the program’s lifetime.
We will select static value only when we want our action value to last till the end of automation.
After selecting static value fixed value box will open where we have to enter static value for that automation.
E.g. We are entering the text we want in the created file.
Click OK.

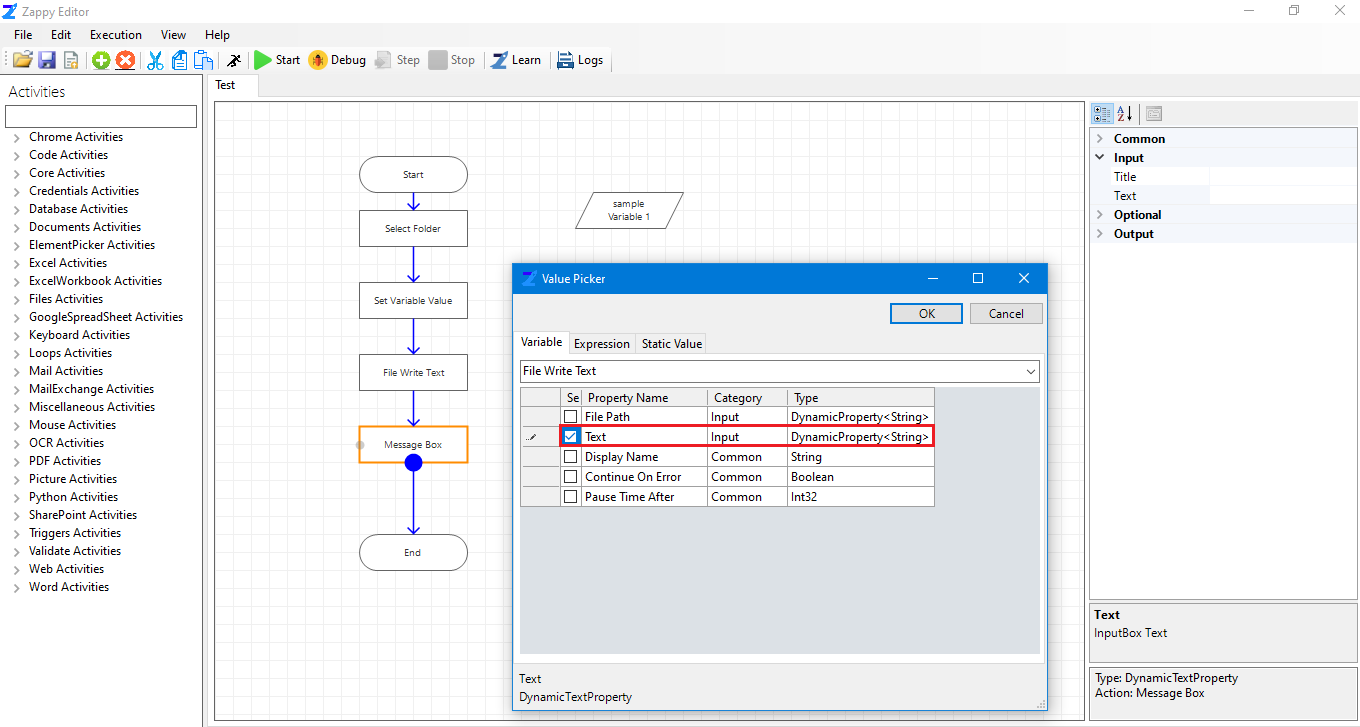

When we click on Message Box action, on right hand side in property panel we will see three dots . In front of Text, click on three dots Value Picker will be opened.
Click on Variable option and select File Write Text action from the drop-down menu, as we want to set the Input of File Write Text as the Input of Message Box.

As we have to display the content of File Write Text in Message Box, we have to select Text field as shown. Click OK.

So, by using Value Picker, we can give the reference of one action to another action, we can write our own code as well as we can set the static value for actions.
